MilCom 6000D, 2 Channel (70 Watts Output Power)

A wireless unit only, the new MilCom 6000D adds scrambled communications! It is a new 70-watt, two-channel unit with an all new voice menu system and and comes standard with rechargeable lithium-ion battery for extended run time and charger.

Call for price
SKU: 900473-000 Category:
warning WARNING: This product can expose you to chemicals including Chromium which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Description

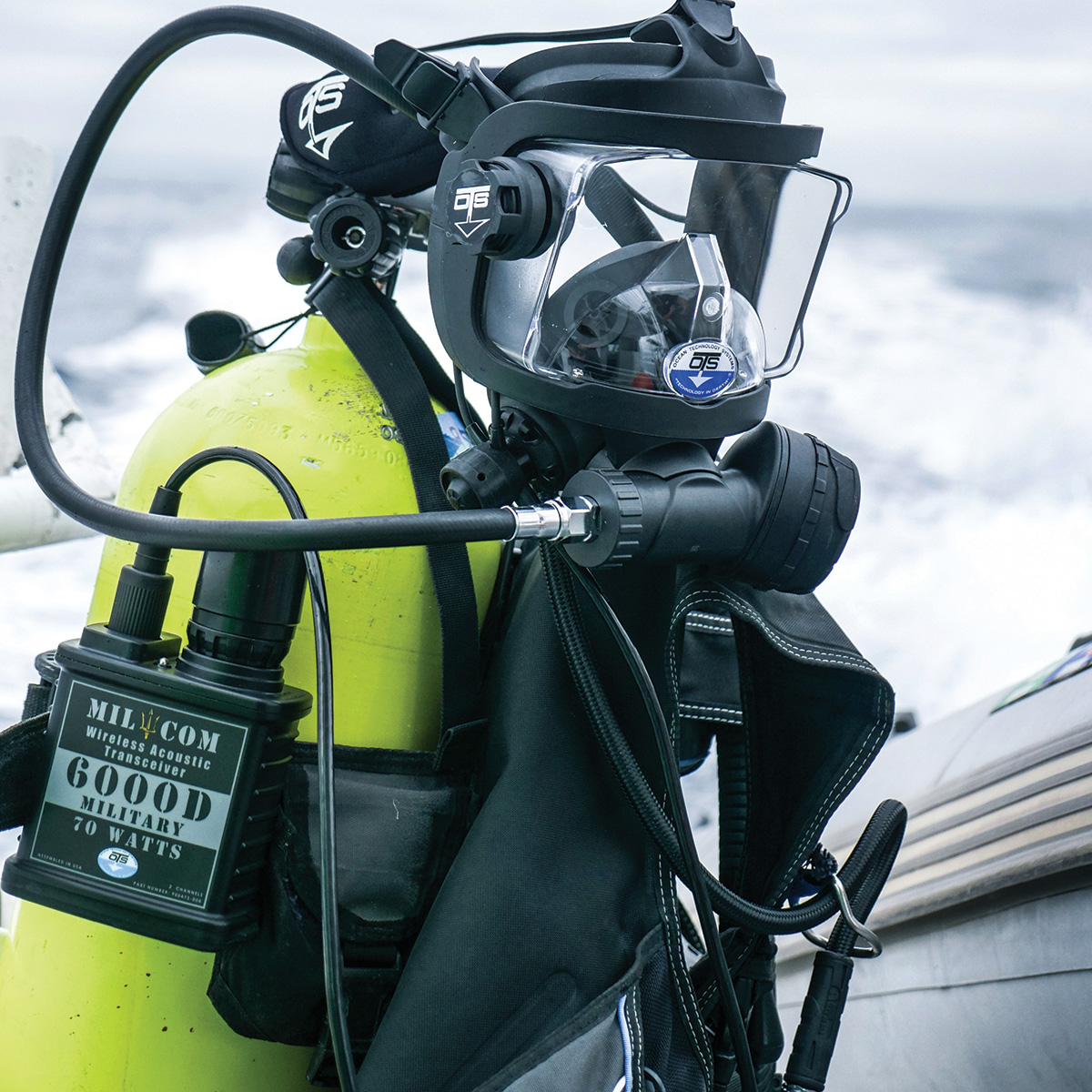

The MILCOM 6000D Wireless Diver Communication Unit takes wireless communication performance to the next level for all your professional diving needs. Its specifically designed rechargeable Lithium-ion battery boasts more power for greater range, up to 14 hour run time and significantly improved overall battery lifespan, ensuring that the MILCOM 6000D will keep you connected when you need it. Looking for added communication security? Look no further. With the MILCOM 6000D’s all-new Scrambler Mode, wireless communications can now be discreetly and more securely transmitted for the first time in wireless communication history. Tack on additional features such as Voice Menu to change settings on the fly, a new “Extra Loud” Voice Menu option, improved mounting and strain reliefs, and more replaceable components for serviceability, the MILCOM 6000D is truly the next generation of Wireless Diver Communications.

Specifications

Specifications
Typical Range: Channel A: 6,000m in calm sea, 1,000m in sea state 6. Channel B: 1,000m in calm sea: 100m in sea state 6. Note: Environmental variability such as that caused by biological noise and interference, thermoclines, etc., can reduce range.
Audio Frequency Response: 300 Hz to 3.6 kHz
Acoustic Output Power: 70 watts PEP (peak envelope power)(channel A)
Receiver Sensitivity: -110 dBv
Automatic Gain Control: 120 dB dynamic range
Transmitter Activation: Manual activation (Push-to-Talk – PTT)
Battery Life: Assuming 10% duty cycle: 12 hours on high power channel A or 14 hours on low power B
Battery Type: Lithium-Ion Rechargeable Battery
Low Battery Indicator: Blinking RED LED located housing and audible signal
Transducer: Piezoelectric type
Earphone: Ceramic type (standard on most ffm)
Maximum Depth: 300 fsw
Operating Temperature: 0°C to +60°C (32°F to + 140°F)
Storage Temperature: -10°C to +60°C (14°F to + 140°F)
Connector Type: Hi-USE® (1/2 hardened naval brass, gold-plated pins)
Housing: Injection-Molded Polycarbonate
Standard Frequencies: Channel A: 25 kHz OR 28.5 kHz lower sideband (LSB)

Channel B: 33 kHz upper sideband (USB)
Housing Dimensions: H: 7″, W: 4.2″, D: 2.65″

Downloads

User Manual

MilCom / PowerCom Spec Sheet

MilCom / PowerCom Flyer
